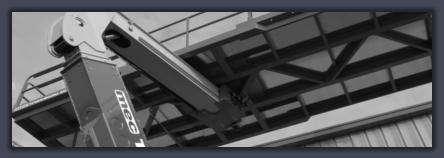

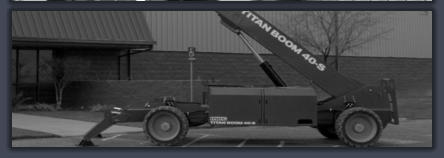

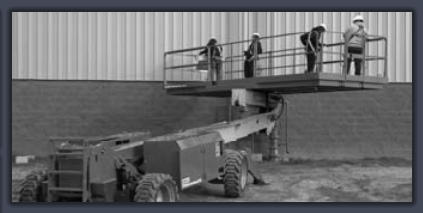

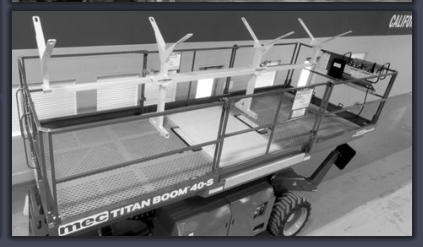

Titan 40-S ALL IN ONE PLATFORM

-1.800 kg deck capacity,1.350 kg in load zone and 450 kg outside material load zone -Dual side material loading entry -Pinless folding guard rails Platform height 12.2m -Maximum drive height 9.1m -Max. forward telescope 8m -Max. rearward platform 3.5m -Platform slider travel 1.8m -Platform rotation 180 deg.   (+90, -90) -Max. horizontal translation 55’ at 22’ elevation -Platform length 6.7m -Gradeability 40%, 22 deg. -Proportional drive and lift controls -Travel speed stowed 6.4 km/h -Travel speed elevated 0.8 km/h -Three steering modes 2WS, 4WS,        Crab Steer -Inside turning radius 4WS, 2.4m -Boom lift speed 50 sec. -Ground clearance 46cm -Frame leveling 10 deg. each side -Wheelbase 3.85m -Kubota turbo charged diesel engine -Three large hydraulic pumps -Full time 4wd with low and high range -4 independent 2-speed wheel motors -Oscillating axles front and rear -Engine shut down protection -On-board diagnostics system -Fuel tank capacity 120 liters -Hydraulic tank capacity 150 liters

As a young company we are happy to represent a brand like MEC. The MEC TITAN gives us the exclusivity we would like to achieve. We firmly believe that the Titan will prevail in many Industries and sectors. We will convince you!

Tel.   0049(0) 2853 912 9360 - Mail. info@tc-equipment.de
